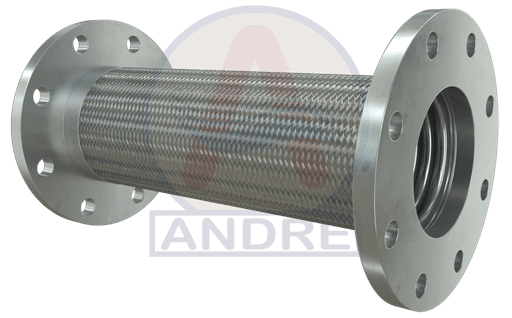

ANDRE HVAC International's BFC-F-[1/2]-xxx-xx series of Braided Flexible Connectors are engineered to provide robust and reliable solutions for critical challenges in piping systems. These connectors excel at absorbing vibration, accommodating thermal expansion, and managing movement within your mechanical systems. Crafted from rugged stainless steel and featuring sturdy connection flanges, they meet industry standards for durability and pressure containment. Available in a wide variety of sizes and lengths, these flexible connectors are an ideal choice for diverse applications where flexibility and secure pressure containment are paramount.
HVAC Systems
Pump Connections
Fan Coil Units
Compressors
Chillers
Cooling Towers
Vibration Isolation
Thermal Expansion
Available Sizes: 1/2" to 12", with lengths from 12" to 20"
Operating Temp Range: -320°F to 1500 °F
Ends: Fixed Carbon Steel Class 150 (ANSI/ASME) Flat-Face Flanges
Hose: 300 Series Stainless Steel Corrugated Hose
Braid: 300 Series Stainless Steel Braid
Customizations available on request
ANDRE_Plumbing_FlexConnector_BFC-F.pdf
MODEL | ID x L (IN) | NO. BRAIDS | WORKING PRESSURE (PSI) |
|---|---|---|---|
| BFC-F-1-5-12 | 1/2 x 12 | 1 | 1170 |
| BFC-F-2-5-12 | 1/2 x 12 | 2 | 1880 |
| BFC-F-1-7-12 | 3/4 x 12 | 1 | 830 |
| BFC-F-2-7-12 | 3/4 x 12 | 2 | 1330 |
| BFC-F-1-10-12 | 1 x 12 | 1 | 570 |
| BFC-F-2-10-12 | 1 x 12 | 2 | 920 |
| BFC-F-1-12-12 | 1-1/4 x 12 | 1 | 520 |
| BFC-F-2-12-12 | 1-1/4 x 12 | 2 | 840 |
| BFC-F-1-15-12 | 1-1/2 x 12 | 1 | 460 |
| BFC-F-2-15-12 | 1-1/2 x 12 | 2 | 740 |
| BFC-F-1-20-12 | 2 x 12 | 1 | 510 |
| BFC-F-2-20-12 | 2 x 12 | 2 | 830 |
| BFC-F-1-25-12 | 2-1/2 x 12 | 1 | 400 |
| BFC-F-2-25-12 | 2-1/2 x 12 | 2 | 640 |
| BFC-F-1-30-12 | 3 x 12 | 1 | 320 |
| BFC-F-2-30-12 | 3 x 12 | 2 | 520 |
| BFC-F-1-40-12 | 4 x 12 | 1 | 230 |
| BFC-F-2-40-12 | 4 x 12 | 2 | 370 |
| BFC-F-1-50-14 | 5 x 14 | 1 | 180 |
| BFC-F-2-50-14 | 5 x 14 | 2 | 290 |
| BFC-F-1-60-16 | 6 x 16 | 1 | 160 |
| BFC-F-2-60-16 | 6 x 16 | 2 | 250 |
| BFC-F-1-80-18 | 8 x 18 | 1 | 220 |
| BFC-F-2-80-18 | 8 x 18 | 2 | 360 |
| BFC-F-1-100-18 | 10 x 18 | 1 | 220 |
| BFC-F-2-100-18 | 10 x 18 | 2 | 350 |
| BFC-F-1-120-20 | 12 x 20 | 1 | 150 |
| BFC-F-2-120-20 | 12 x 20 | 2 | 250 |
